Description
Solar Panel Charge Controller
12V/24V auto dual USB 10/20/30A Battery PWM
Solar Panel Charge Controller
12V/24V auto dual USB 10/20/30A Battery PWM
► Rated Voltage: 12V 24V Auto
► Application: Solar System Controller

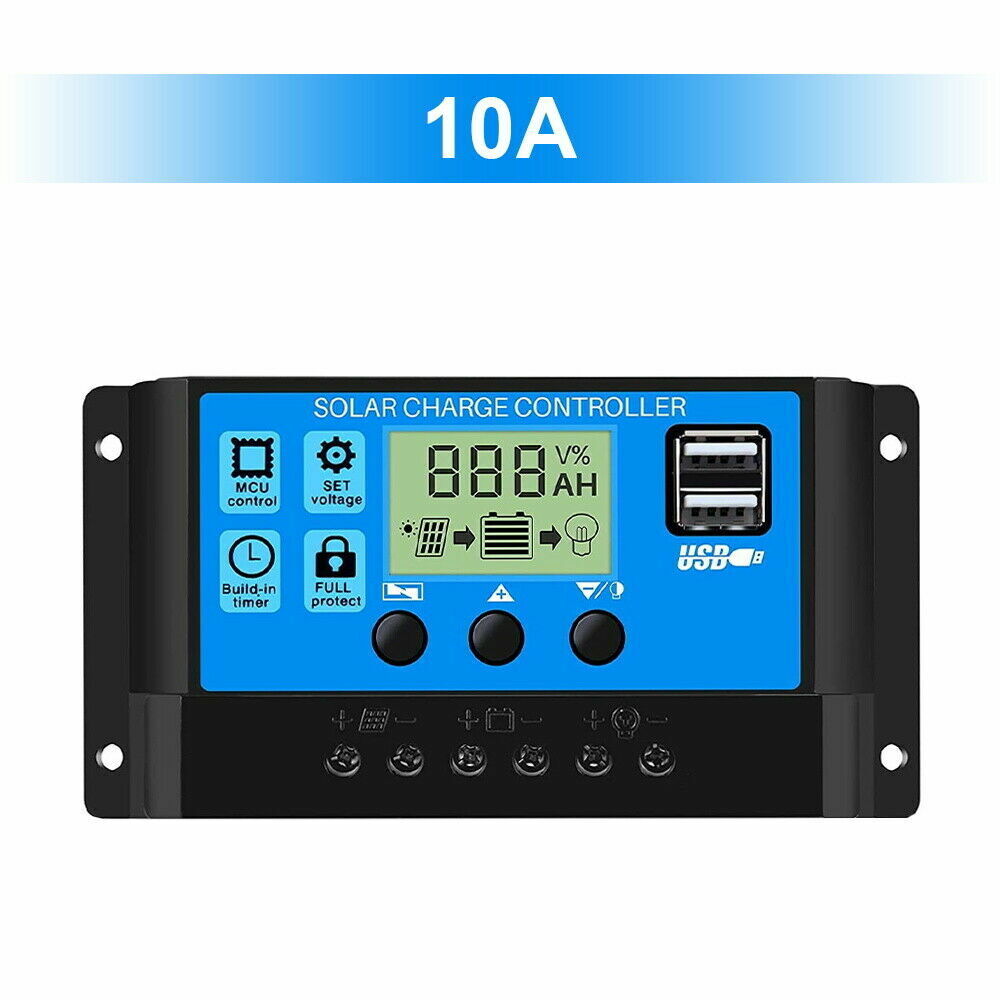

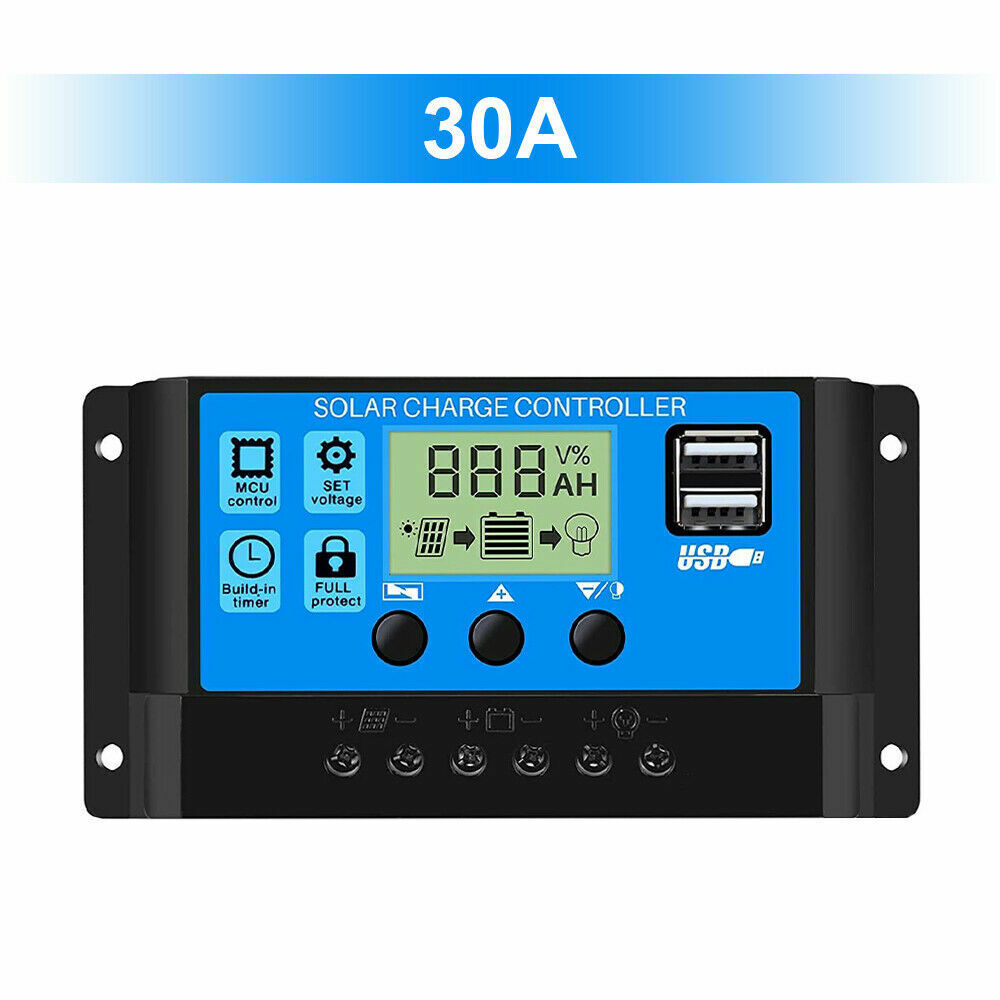

► Current: 10A/20A/30A/40A/50A/60A

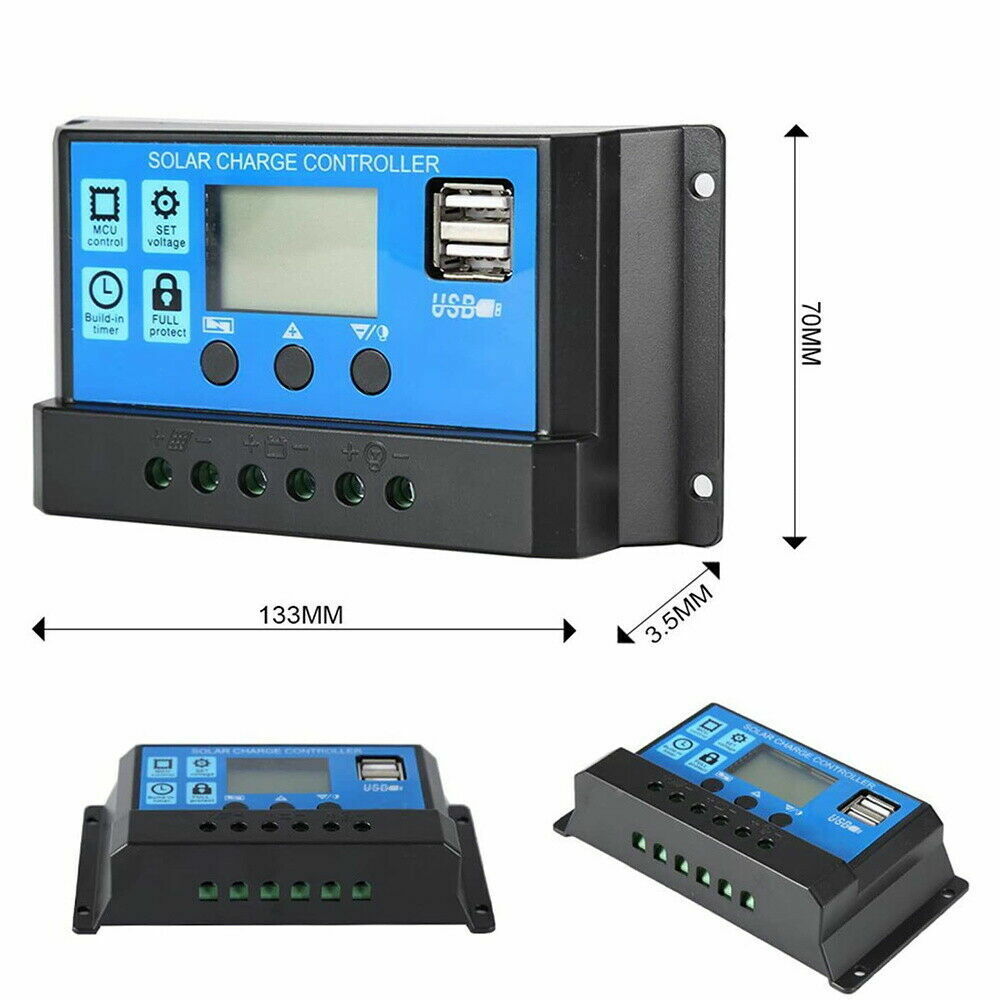

► Size: 150*78*35mm

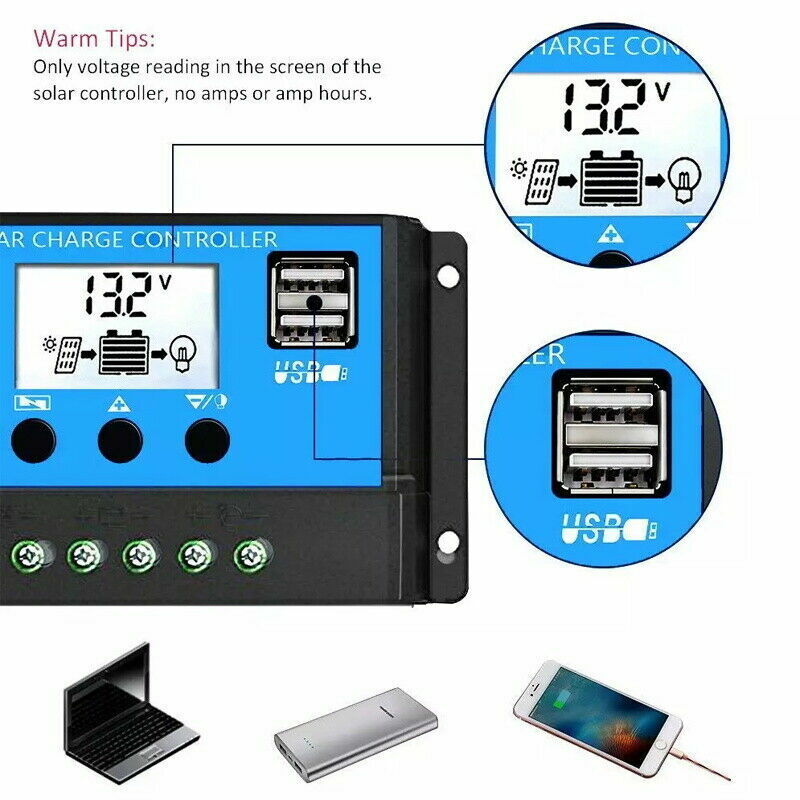

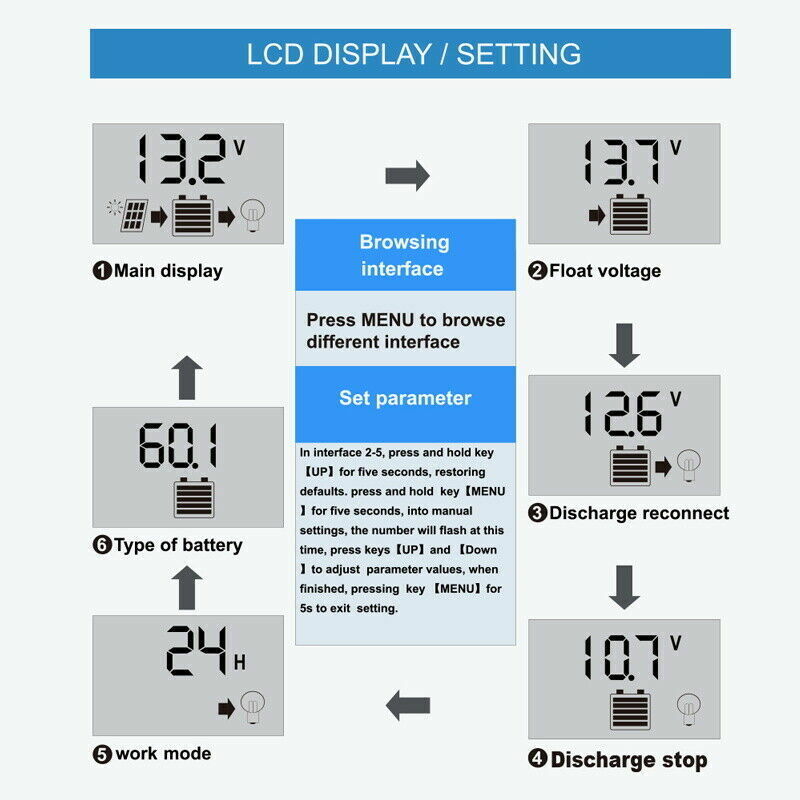

► Display: digital display. One-key setting, auto memory function.
► Charge type: 4-stage PWM charge management.
► USB ports: With double USB ports charge
► Max. PV Input Power:
10A: 130W (12V) 260W (24V)
20A: 260W (12V) 520W (24V)
30A: 390W (12V) 780W (24V)
40A: 520W (12V) 1040W (24V)
50A: 650W (12V) 1300W (24V)
60A: 780W (12V) 1560W (24V)
► Compatible Solar Panel: 12V/24V 10/20A/30A/40A/50A/60A
【Safety Instructions】:
► Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
► The battery cable should be as short as possible to minimize loss.
► The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL
► make Sure it is not suited for nickel metal hydride, lithium ions or other batteries.
► The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

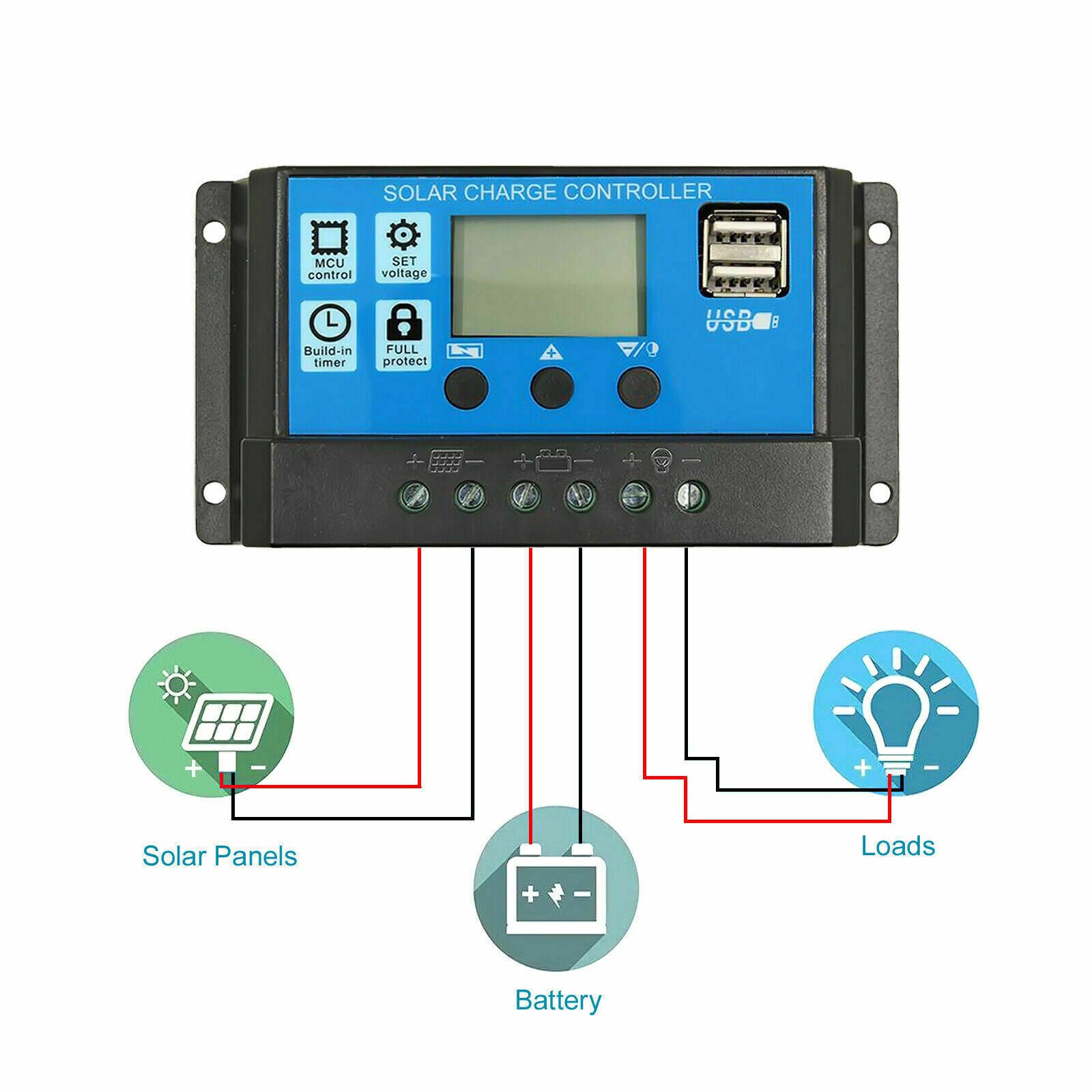

【System Connection】:
► Connect the battery to the charge regulator - plus and minus. it will show 1, if it detects 12V battery, 2 if it detects 24V battery.
► Connect the photovoltaic module to the regulator - plus and minus.
► Connect the consumer to the charge regulator - plus and minus.
► 1x Solar Panels Battery Charge Controller
► 1x User Manual
